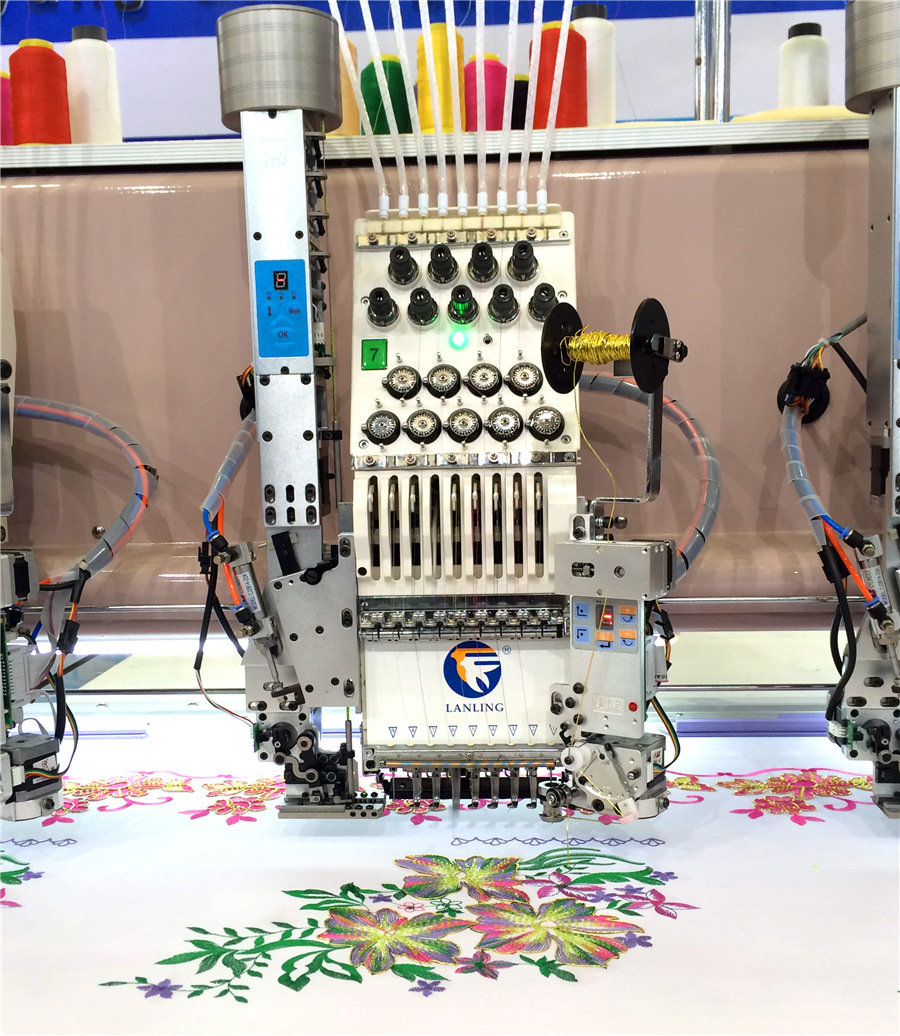

Bead-pipe is a new special embroidery on the basis of flat embroidery, use beads and pipes with kinds of colors, shapes to embroider stereo feeling, shining designs. This style not only can be used on the stage costumes, but also decorate normal clothes, fully meet the people in the pursuit of beautiful clothes. On the market at present, bead-pipe embroider is manual in most of factory, low efficiency, high labor costs, and it’s difficult to control the quantity and quality. Use our automatic bead-pipe embroidery machine can greatly improve the production efficiency and quality, effective control of the cost of production.

1. Automatic computer controll the machine nail bead

Manufacturers need only made bead embroidery version, according to the format of the specified on the bead-pipe embroidery machine computer installed several parameters can be controlled by the computer automatic stitching.

2. Support the broken beads alarm function

When the beads in the tray out or break thread,the machine can automatically alarm parking, and alarm sensitivity can be adjusted.

3. Support separately or concentrated re-embroidery

When concentrated patch embroidered can also be set for each head separate ignore the number of beads or tube.

4. Support separately regulate patch embroidered ignore beads or the number of the pipe

when re-embroidering,in order to fill the new beads with old beads match completely, usually more refund the distance of two beads, then set a lot of back and lever to start the machine after the number of beads, at this time within a set number of machine is not falling needle, will not affect the best beads embroidery.

5. Intelligent re-embroidered functions

Re-embroider ignore the bead number set each head is independent of the digital tube display, and can be set loop, set wrong also don't have to worry about.

6. Simple structure, convenient installation and debugging

It’s very easy to install the bead-pipe device,easy operation and use, the maintenance cost is low.

Max speed: 700 rpm

Take-up Space: 90mm

Movements Area: 25mm

Air pressure: 3 Kpa

Beads Specifications for Φ 2.4-2.7, height H1.7-1.8

Long Life: 20 years assembly experience, professional technical guidance，extend machine life for 2-3 years.

High Quality: choose imported bobbin, top speed of 1200 per minute speed, speed stability, low noise.

Less Maintenance: high precision，less disconnection, effectively improve embroidering quality，increase profit.

Exquisite Technology: Provide comprehensive technical training for free,both at home and abroad set up offices and after-sales service center.

Precision Processing: selecte parts from domestic and international famous suppliers, quality from the source control, more delicate embroidery.
